Fuji Elevator

Item/Product Electric Passenger Lift
Brand FUJI
Manufacture and origin of materials China
Passenger Capacity         As Per Requirement
Floor & Opening Stops   As Per Requirement
Speed of Elevator 1.0 m/s & 1.5 m/s
Inverter MONARCH VVVF, A Compact Integrate System.
Control Panel FUJI High performance integrated Control.
Motor Torin Drive
Motor Capacity As Per Requirement
Roping System Collective system full automatic / 2:1 Roping systems.
Lift type MR
Drive VVVF
Control Monarch, Nice3000+
Stops 06
Base station GF
Rise height 18000mm
Main power 3Ph, 380V, 60Hz
Lighting power 1Ph, 220V, 60Hz
Machine Room Yes (MR)

TECHNICAL PARAMETERS

Categories: ,

Description

SHAFT DIMENSION
Shaft Concrete
Door opening (W*D) 700 / 800mm *2100 mm; Central opening
Clear Dimensions (W*D) 1600mm*1600mm (Approx.)
Pit Depth 1500mm
Overhead Height 4500mm

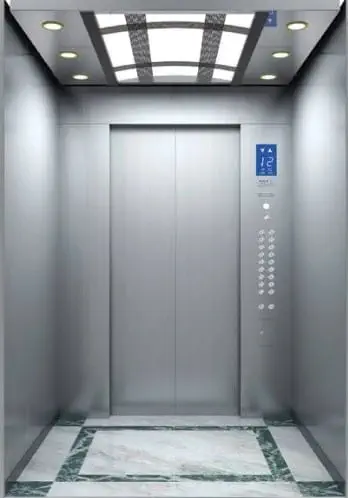

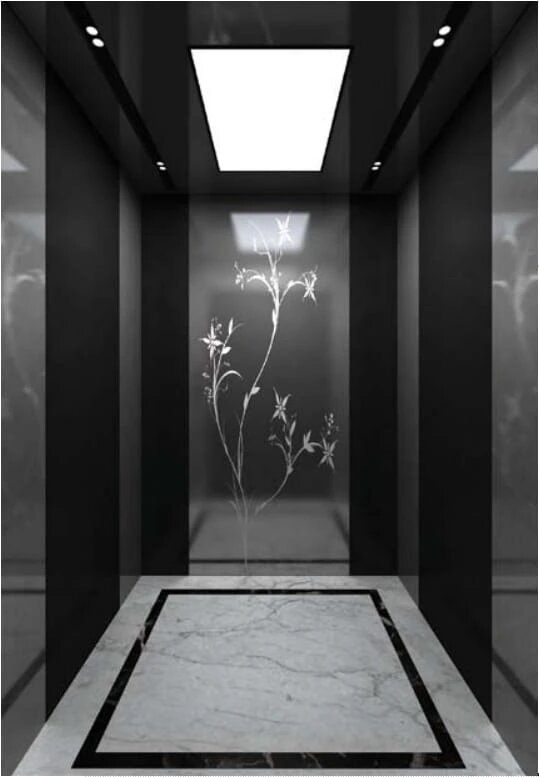

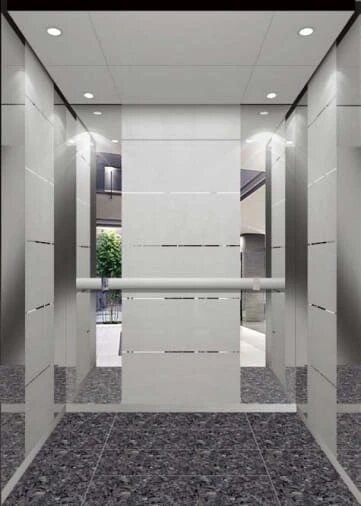

CABIN DESIGN
Car size (W*D*H)  Depend on Shaft Size
Car left walls According to design Etching Mirror
Car right walls According to design Etching Mirror
Car front walls According to design Etching Mirror
Car rear walls According to design Etching Mirror
Car Floor PVC As Design
Ceiling FUJI Standard

(Hairline Stainless steel; White Acrylic + LED)
Handrail FUJI Standard (Hairline)

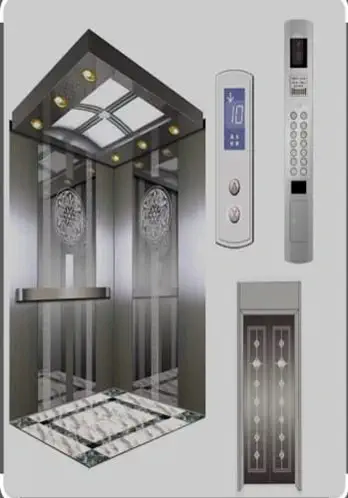

Car Operate Panel-C.O.P FUJI Standard
C.O.P. include: Alarm Button, Door Open & Close Buttons, Lamp, Display- LCD, Fire Alarm
Landing Door First floor According to design Etching Mirror
Landing Door Other floor According to design Hairline Stainless steel
Door Jamb First floor Wide Jamb. Mirror Etching
Door Jamb Other floor Narrow Jamb. Hairline
Car Guide Rail * Counter Guide Rail 10 mm * 16 mm

STANDARD SAFETY FEATURES

1 Elevator frequency inverter drive 2 Door machine frequency inverter drive
3 Collective selective control 4 Lift attendant control
5 Inspection running 6 Best curve auto-generation
7 Shaft learning 8 Weight signal compensation
9 No load motor parameter identification 10 Automatic open door when power on
11 Automatic closing door operator 12 Landing call button at each floor
13 Closing door repetition 14 Opening door repetition
15 Door-open time set 16 Door closing in advance
17 Nudging run 18 Light curtain protection
19 Overload protection 20 CPU fault protection
21 Anti-slip protection 22 Up and down limit protection
23 Over speed protection 24 Call button blocking inspection
25 Level fine adjustment 26 Fault diagnosis
27 Inverted running protection 28 Motor over current protection
29 Power overvoltage protection 30 Motor overload protection
31 Anti-nuisance device 32 Encoder failure protection
33 Door lock short circuit protection 34 Motor overheating protection
35 Automatic return ground floor 36 Elevator lock service
37 Directly floor stop 38 Running status display
39 Car position auto-correction 40 Lighting fan energy-saving function
41 Car passing chime 42 Independent running
43 Full load and non-stop 44 False call cancellation
45 Car inside floor direction indicator 46 Landing door floor direction indication
47 Emergency light 48 Inching operation
49 Three-way intercom 50 Alarm bell
51 Fire emergency return 52 Remote shut-off
53 User inspection set 54 Time-sharing
55 Security floor nighttime 56 Attendant reversal
57 Front and back door independent control 58 VIP Service
59 Forced floor leveling 60 Exchange floor stop
61 Opening delay 62 Service floor set
63 Down-collective operation 64 Mileage recorder
65 Run time recorder 66 Level button position set
67 Re-level 68 Wireless remote monitoring
69 UCMP 70 Door opening in advance

OPTIONAL FUNCTION



1

 ARD Automated Rescue Device Yes



SAFETY DEVICE

  1. Overload Signal: When the car is overloaded, the buzzer rings and stops the lift in the same floor.
  2.  Photocell : In the door open and shut period, infrared light that covers the whole door height is used to probe the door protection device of both the passengers and objects.
  3.  Designated Stop: If the lift cannot open the door in the destination floor out of some reason, the lift will close the door and travel to the next designated floor
  4.  Repeated Door Closing: If the lift cannot close the door due to certain obstacle or interference, the lift will reopen, or re-shut the door until sundries are eliminated.
  5.  Down over Speed Protection: This device will automatically cut off control power. Stop the motor running so as to stop lift down at over-speed. If the lifts continue to down at over-speed, safety tongs act to force the lift stop in order to ensure the safety.
  6.  Inspection Operation: When the lift enters into inspection operation, the car travels at inching running.
  7. Anti-Stall Time Protection: The lift slops operation due to slippery traction wire rope.
  8. Voice Synthesizer: This system provides riding passengers with audio information about car operation such as direction of travel, landing floor etc.
  9.  Pre-Limit Switch: Pre-limit switch will be placed in the shaft at top and bottom terminal floor which will reverse the direction for future travels at the terminal floors once cut.
  10. Buffer System: Located in the elevator pit area below the car and counterweight to retard downward travel of either the car or counterweight.
  11.  Safety Door Hanging Device: All the landing doors shall have proper and safe hanging device to prevent sliding of the doors beyond normal limit.
  12.    Start Protection Control: If the lift does not leave door zone within the designated time after it gets started, it will stop the operation.
  13.  Emergency Break Release: The electro mechanical brake in the geared machine will be equipped with a release lever to facilitate emergency rescue operation.
  14. Emergency Exit: To be opened only from outside the elevator car, allow removal of passenger in extreme emergency situation.



INSTALLATION & COMMISSIONING:

Lift installation work will be commencing from the date of handing over the lift shaft to us and commissioning within six (06) weeks.

FREE SERVICE PERIOD:

FUJI has designed its After Sales Service Program very carefully considering the interest of the valued client for getting an all-time available service. FUJI -Lifts will provide after sales service through Metro Power Technology during free service period in the following manner-To be provided service & maintenance work in every month at free of cost for a period of 12 (Twelve) months from the elevator’s commissioning date.

WARRANTY:

The Warranty period shall be 12 (Twelve) months from the date of commissioning and hand over the elevator. Our brand is warranted against defects in materials or workmanship within the allocated warranty period of one year. However, the manufacturer with the stipulation that all necessary work will commence within normal time schedule provides the warranted time frame. Therefore, if the installation work is delayed, the full extent of the warranty period cannot be exercised. This warranty does not cover Battery of ARD, any damage due to mishandling, forced measures (i.e. Thundering, Flood, Cyclone, Earthquakes, Voltage fluctuations etc). Again this warranty will be void if the lift has been tampered, repaired or serviced by other than our duly authorized Service Engineer/ Technician.

Attention

Machine Room power supply, A/C, Separator Beams & Steel items (if required), Voltage Stabilizer (AVR) & Shaft light, Circuit Breaker, Wiring materials, Ceiling fan and light in the machine room, machine room wiring, exhaust fan and all civil works to be provided by before installation starts at buyer’s cost.
